Product Details

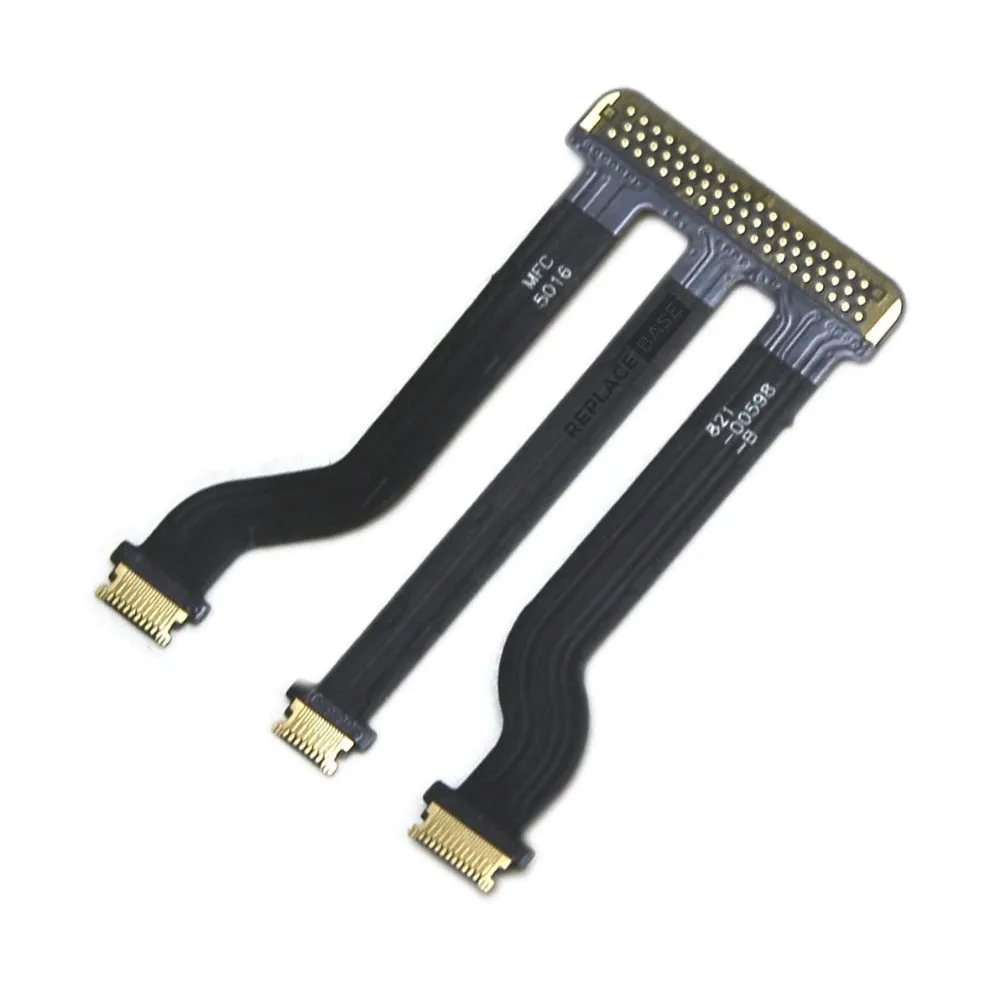

If your LCD flex cable is torn or damaged on your Series 2 Apple Watch, this replacement flex may be what you need to fix it.

Part Includes:

LCD Flex cables
12 Month Warranty

Please Note

This Apple Watch LCD flex is not compatible with the 38mm version of the Series 2 Apple Watch

Caution

Microsoldering is required to install this part

Specifications

Part Type: Flex Cable
Part Number: 821-00598
Included: LCD flex cables
Watch Size: 42mm
Warranty: 12 Months

Compatible Model Numbers

Apple Watch Series 2 42mm

Model Number (A Number)

A1758
A1817

Series 2 42mm Model NumbersHow do I find my Model number?

Model Identifier

Watch2,4

EMC Number

EMC 3105
EMC 3110

Device Number (M Number)

MNNT2
MNPJ2
MNPK2
MNPL2
MNPM2
MNPN2
MNPP2
MNPQ2
MNPR2
MNPT2
MNPU2
MNPV2
MNPW2
MNQ02
MNQ12
MNQ22
MNQ32
MNQC2
MNYQ2
MNYY2
MP062
MP072
MP0A2
MP4A2
MQ142
MQ152
MQ182
MQ192

* Please note, to make searching the device number (M Number) easier, we have only listed the part numbers (First 5 characters), we have removed the region numbers as there is no difference in parts. For example, if "M Number" is "MC922LL/A". we remove the "region" portion and everything after (the "LL/A" at the end) leaving us with "MC922".

More info Less info

Installation Help

Here is some tools you may need to help you complete the repair.

Soldering iron

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any quesions, please feel free to contact us either by phone (0508 IGADGET) or by

Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your watch and tape the screws to the right places or use a
Always power down your device prior to working on it
Make sure you always unplug the battery before attemping any component removal
When attempting to remove the screen, be careful not to push the blade or iFlex tool in too far or too hard, doing so may cause damage to the internal parts. Only 3mm depth is required to cut the adhesive. Draw a mark on your tool to help with depth management.
Test the LCD is functioning properly before sealing up the device
When removing the screen, it is very easy to tear the force touch gasket. We recommend having a spare on hand incase this happens to prevent issues after replacement.
Micro-soldering skills are required to complete this repair
