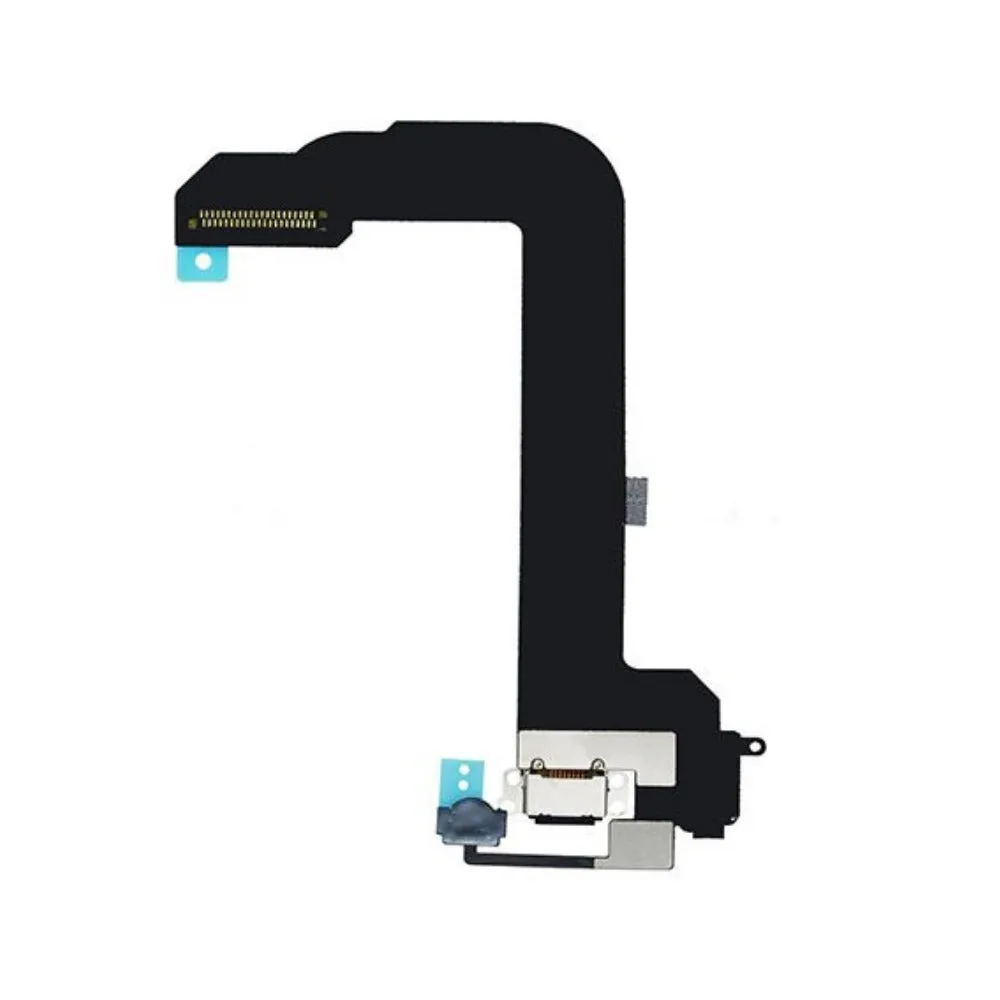

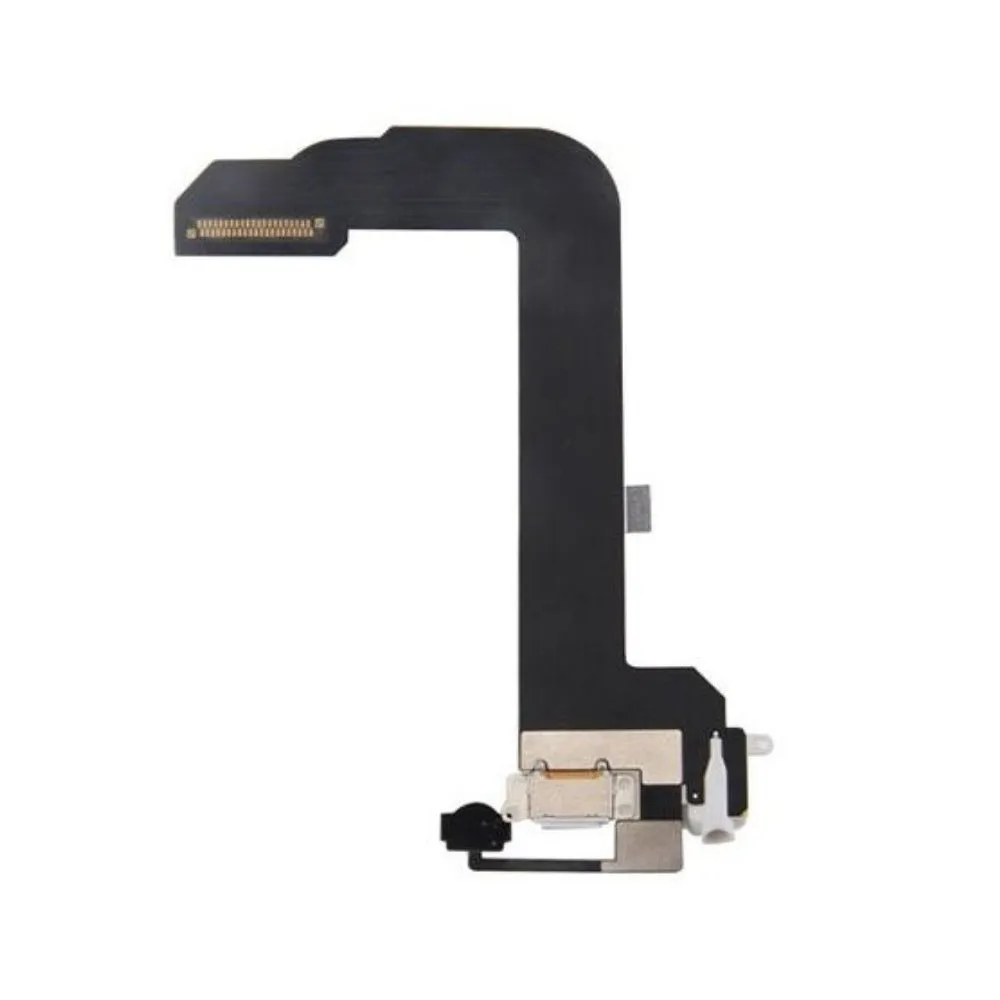

Name: iPod Touch 6/7 (6th & 7th Generation) Charger Port Replacement
SKU: 1923645

Product Details

If you're having issues with your charger port, headphone jack or home button on your Generation 6 & 7 Apple iPod Touch, this bad boy is likely to be the culprit.

Part includes:

lightning connector charger port
headphone jack
internal home button switch
flex cable
12 month warranty

Please Note

This Apple iPod charger port is not compatible with the 5th generation Apple iPod Touch version

Please Note

This part requires soldering

Specifications

Compatible Part Numbers: 821-00169
iPod Version: iPod Touch 6th & 7th Generation
Connection Type: Soldering
Warranty: 12 Months

Compatible Model Numbers

iPod Touch 6th Generation

Model Number (A Number)

A1574

iPod Touch 6 Model NumbersHow do I find my Mode number?

Model Identifier

iPod7,1

EMC Number

EMC 2899

Device Number (M Number)

MKGW2
MKGX2
MKH02
MKH22
MKH42
MKH62
MKH82
MKHC2
MKHE2
MKHJ2
MKHL2
MKHN2
MKHQ2
MKHT2
MKHV2
MKHX2
MKJ02
MKJ22
MKWK2
MKWM2
MKWP2
MKWR2
MKWU2
MKWW2

* Please note, to make searching the device number (M Number) easier, we have only listed the part numbers (First 5 characters), we have removed the region numbers as there is no difference in parts. For example, if "M Number" is "MC922LL/A". we remove the "region" portion and everything after (the "LL/A" at the end) leaving us with "MC922".

More info Less info

iPod Touch 7th Generation

Model Number (A Number)

A2178

iPod Touch 7 Model NumbersHow do I find my Mode number?

Model Identifier

iPod9,1

EMC Number

EMC 3330

Device Number (M Number)

MVHR2
MVHT2
MVHU2
MVHV2
MVHW2
MVHX2
MVHY2
MVJ22
MVJ32
MVJ52
MVJ62
MVJ72
MVJ82
MVJ92
MVJC2
MVJD2
MVJE2
MVJF2

* Please note, to make searching the device number (M Number) easier, we have only listed the part numbers (First 5 characters), we have removed the region numbers as there is no difference in parts. For example, if "M Number" is "MC922LL/A". we remove the "region" portion and everything after (the "LL/A" at the end) leaving us with "MC922".

More info Less info

Installation Help

Watch the video above for assistance in completing this repair

Here is some tools you may need to help you complete the repair.

Solder
Soldering Iron

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any quesions, please feel free to contact us either by phone (0508 IGADGET) or by

Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your watch and tape the screws to the right places or use a
Always power down your device prior to working on it
Test the charger port is functioning properly before sealing up the device
This replacement requires soldering, be careful not to heat the battery during removal or installation
