Product Details
＋
Item Description

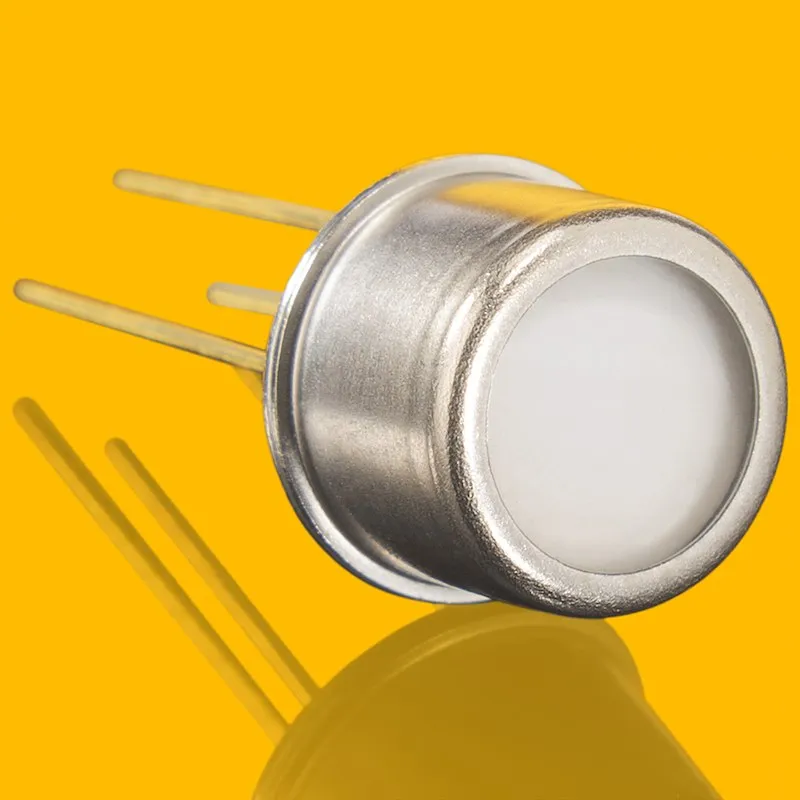

The TOCON NC1F is a UVC sensor containing a high performance SiC UV photodiode and an amplifier that outputs 0-5 V, all in a TO-5 package. The TOCON NC1Fis ideal for fast flame detection when sunlight is not present, from the picowatt to nanowatts/cm2 range.
Application Note:
Application Note:
Also consider an optional . The TOCON Starter Kit is a very convenient and easy way to set up your TOCON, provide supply voltage to the sensor and amplifier and to readout the 0-5 V output signal. The kit contains a socket for your TOCON, 9V battery and battery connector and easy output connection via banana plugs to your voltmeter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821

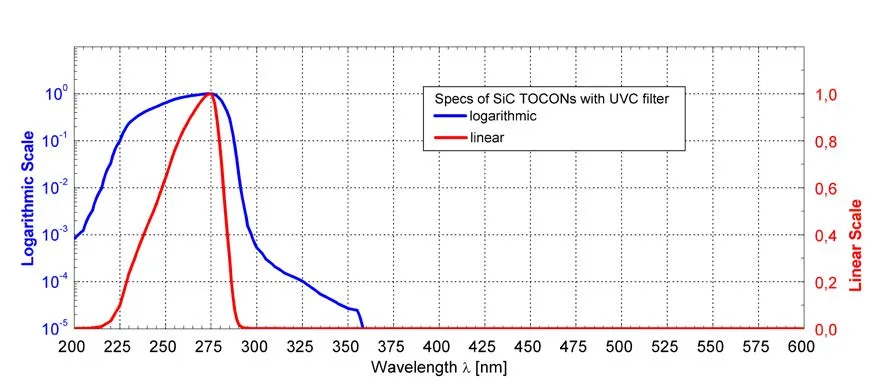

| Minimum wavelength (10%) | 225 nm |
| Maximum wavelength (10%) | 287 nm |
| Peak wavelength | 275 nm |
| Irradiance | 18 pW/cm2 to 180 nW/cm2 |
| Output | 0-5 V |
| Supply voltage | 2.5 - 5 V |
