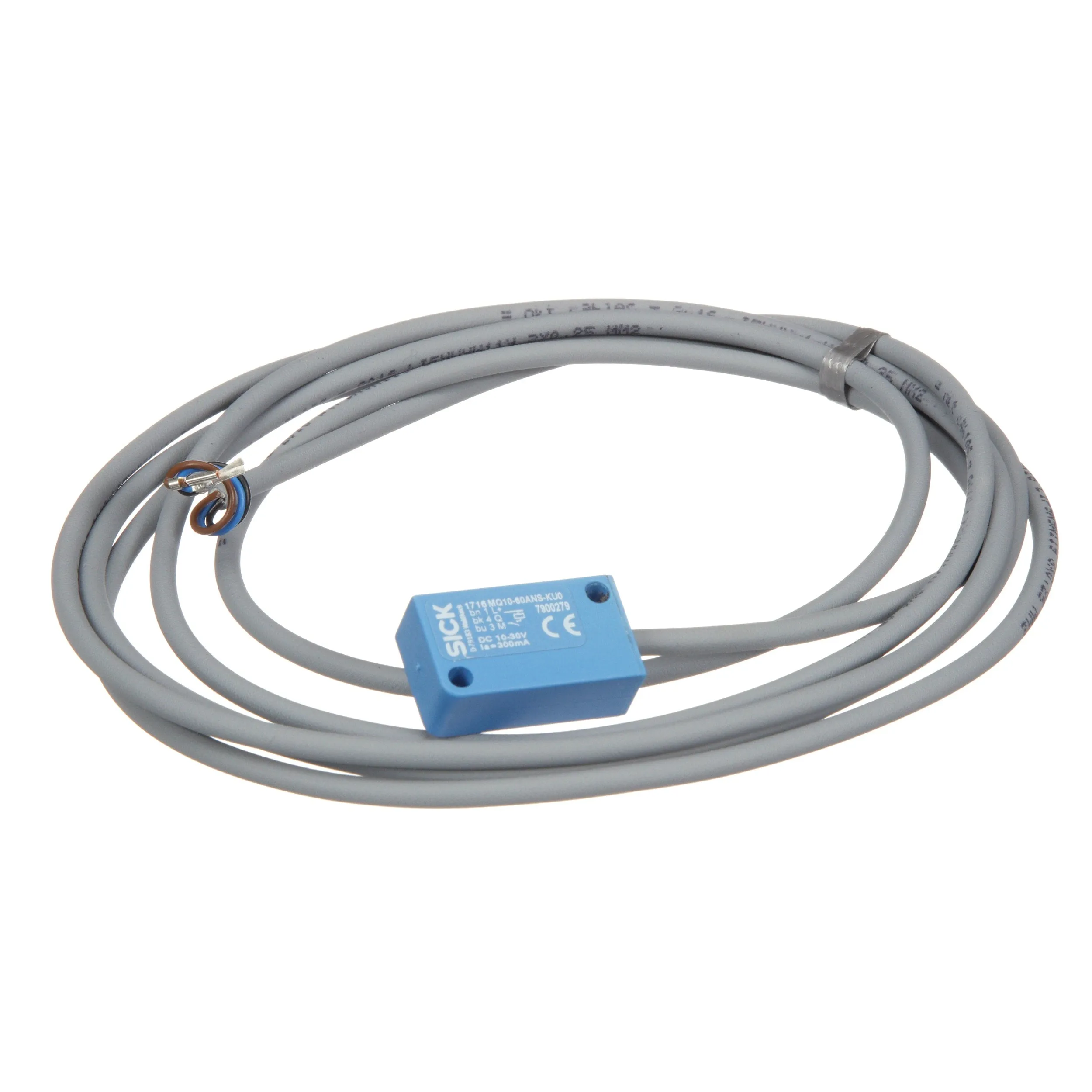

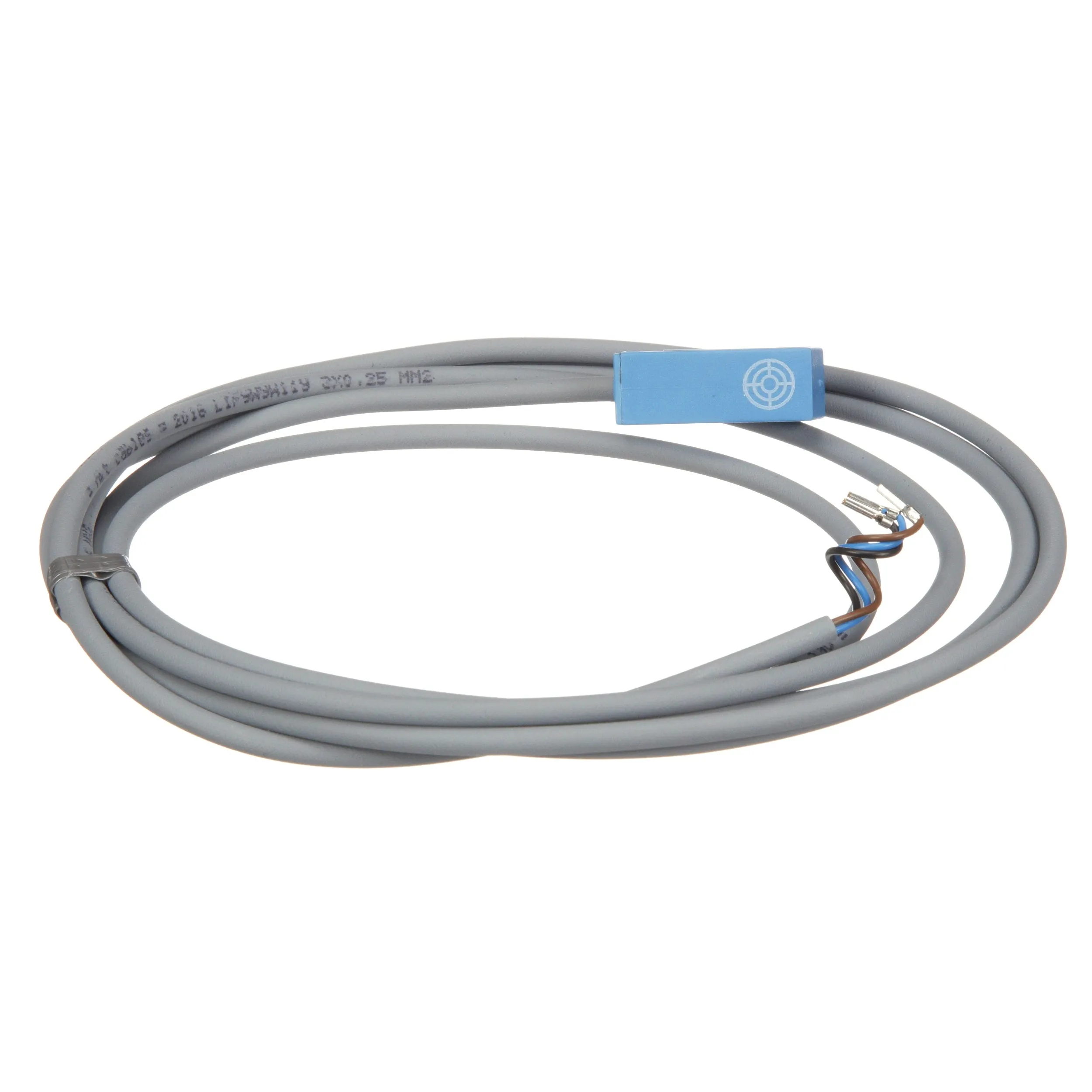

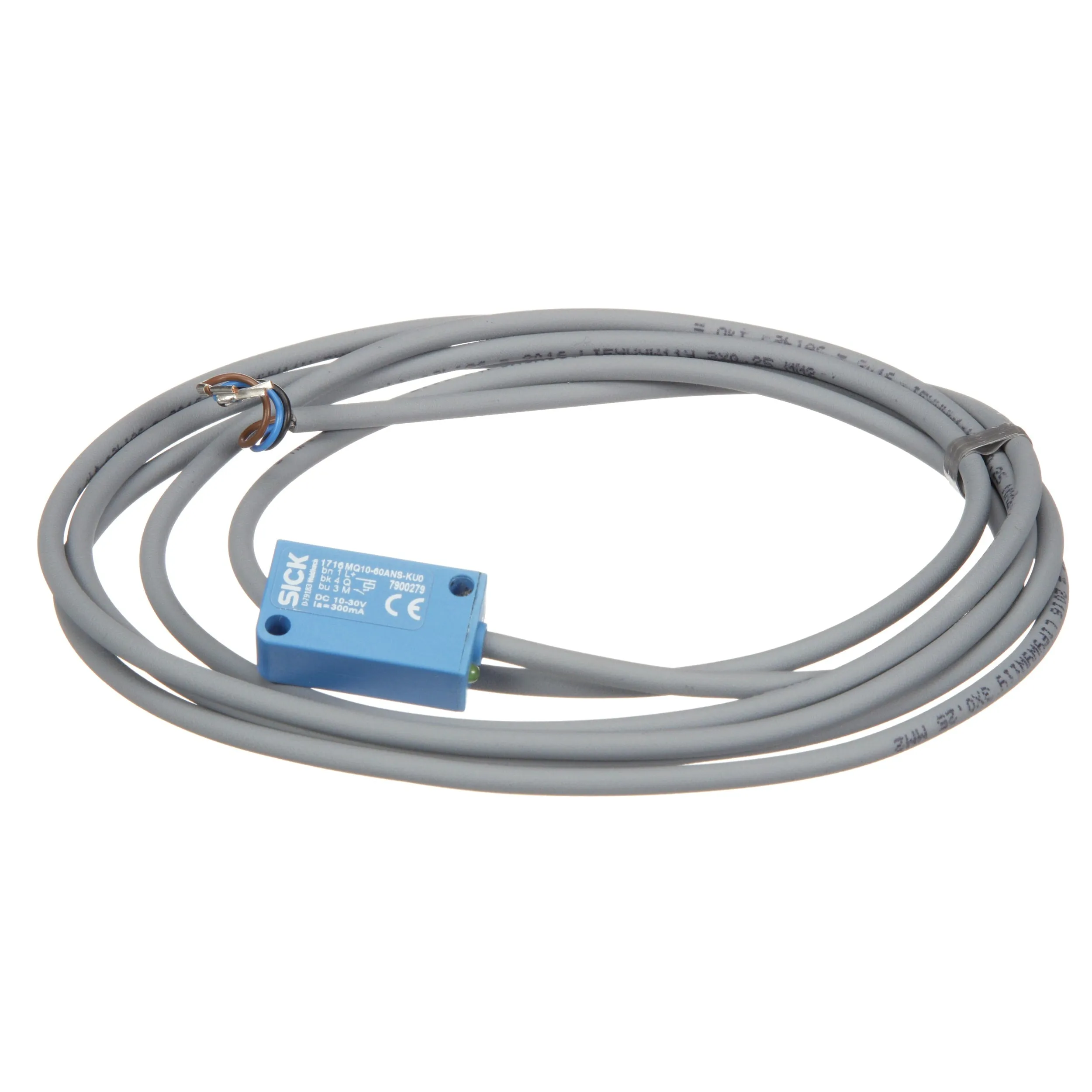

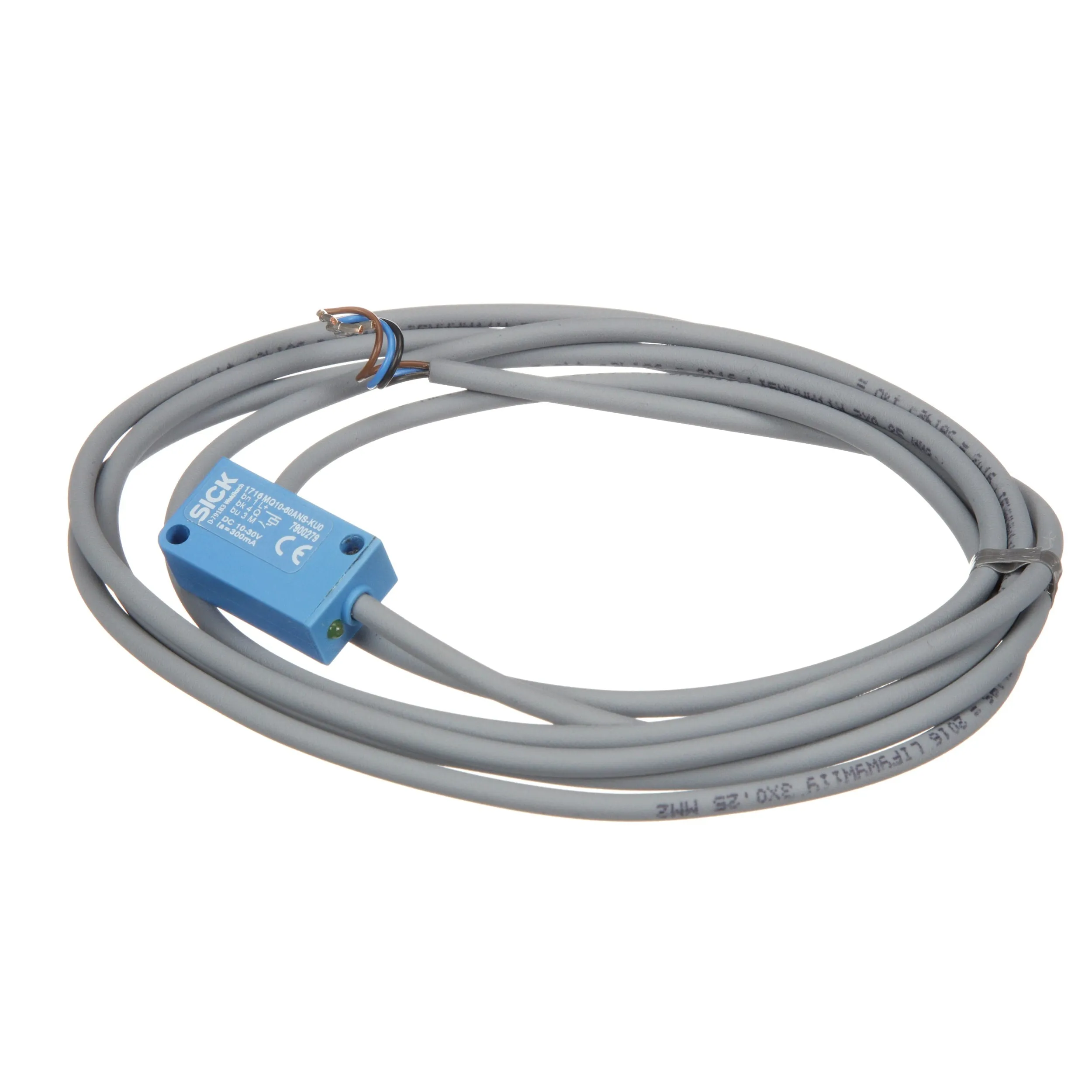

Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 7900279 |
| Body Style | Rectangular |
| Cable Length | 2 m |
| Connection Type | Cable 3-Wire |
| Current Consumption | ≤ 5 mA (without load) |
| Dimensions | 10.3mm x 28mm x 16mm |
| Dropout Voltage | ≤ 1.5 V (at Ia max) |
| Frequency, Switching | 5 kHz |
| Housing Material | Plastic, Polyamid |
| Hysteresis | 1 % ... 10 % |
| IP Rating | IP67 |
| Maximum Operating Temperature | 75 C |
| Measurement Range | 5-60 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | Bracket/Panel Flush |
| Operating Temperature, Maximum | 75 C |
| Operating Temperature, Minimum | -25 C |
| Output | NPN-NO |
| Primary Type | Magnetic Proximity Sensors |
| Series | |
| Supply Voltage | 10-30 VDC |
| Termination | Cable 3-Wire |
