HIGHLIGHTS
- Frame: 6061 Aluminum frame
- Motor: 750W Gear Hub motor
- Battery: Samsung/LG 48V 20Ah
- Range: 60-80 miles (estimate)
- Gearing: Shimano altus M310 7 speed
- Weight Capacity: 400lbs
- Weight: 79 lb. (with battery)
- Recommended Rider Heights: 5′3″ ~ 6′5″
- Tires: 26″ x 4″ Kenda fat tires

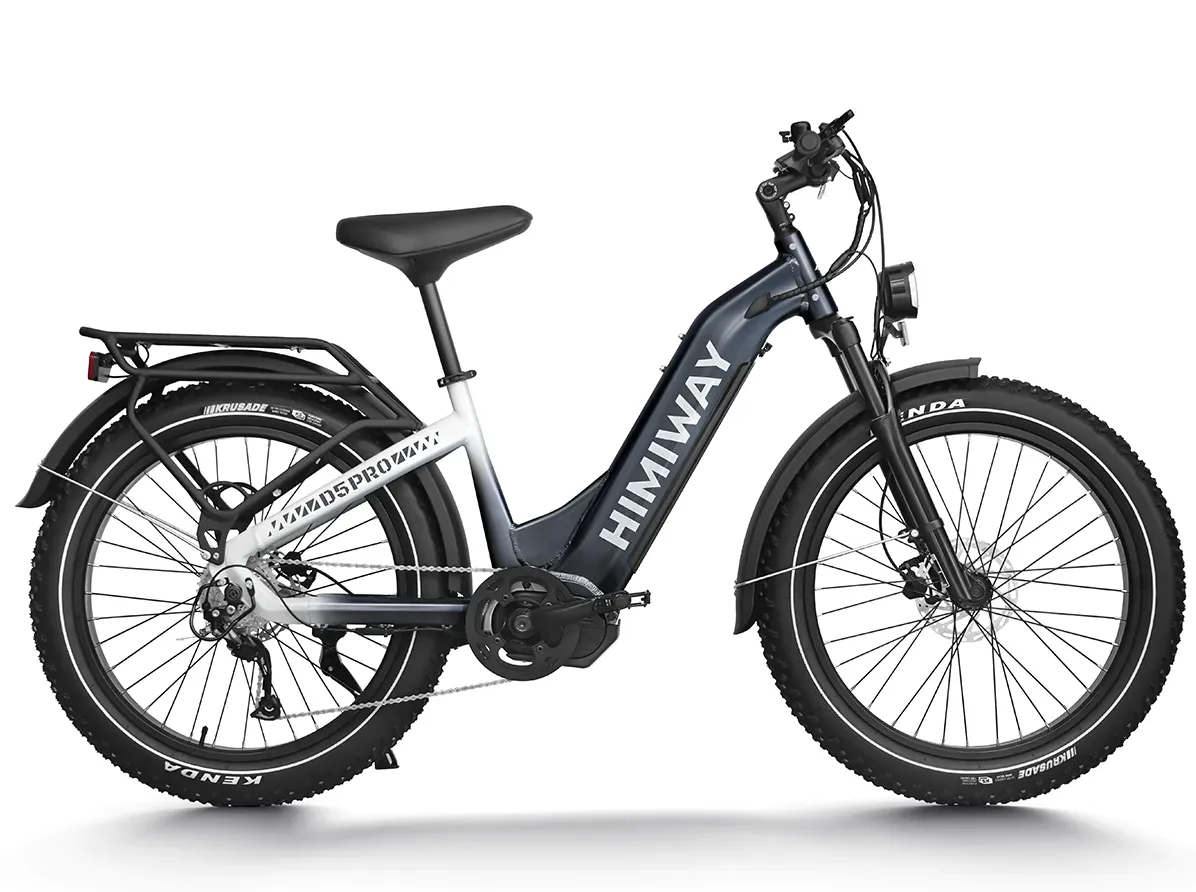

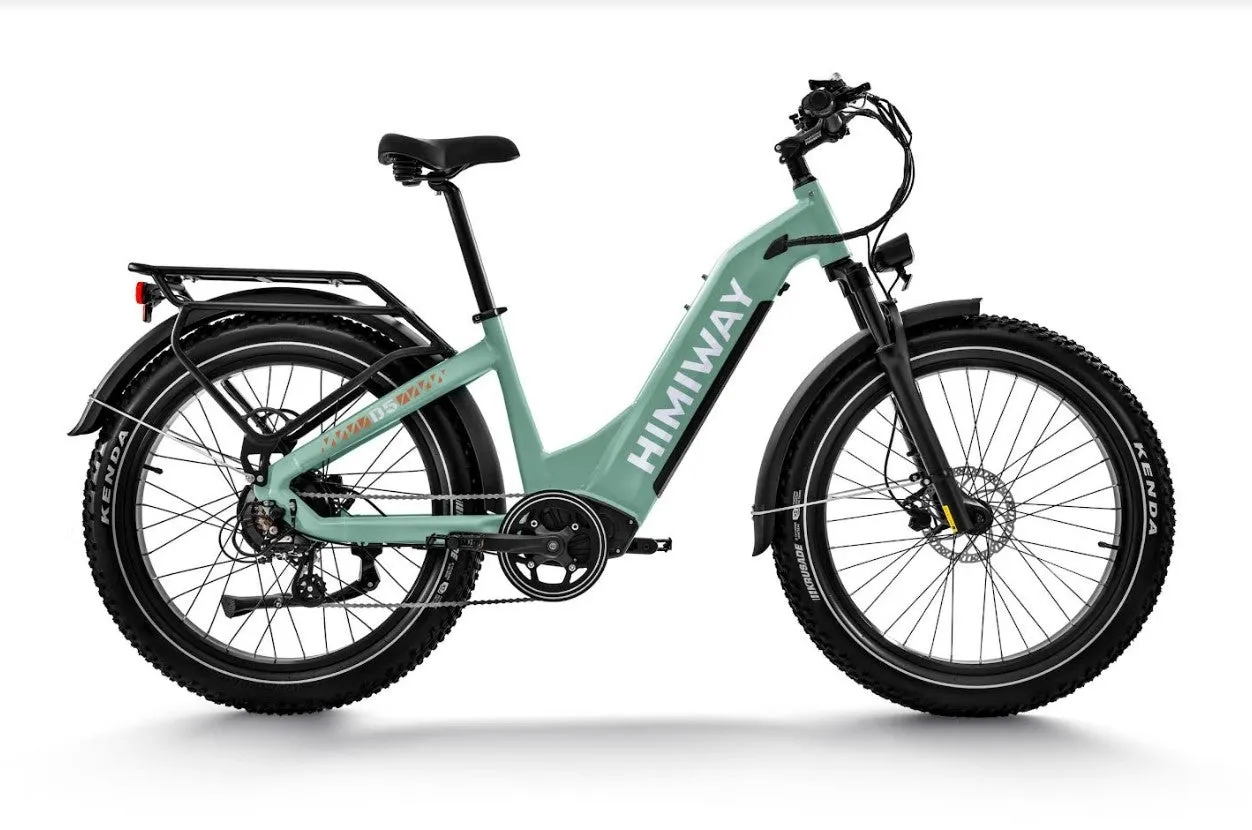

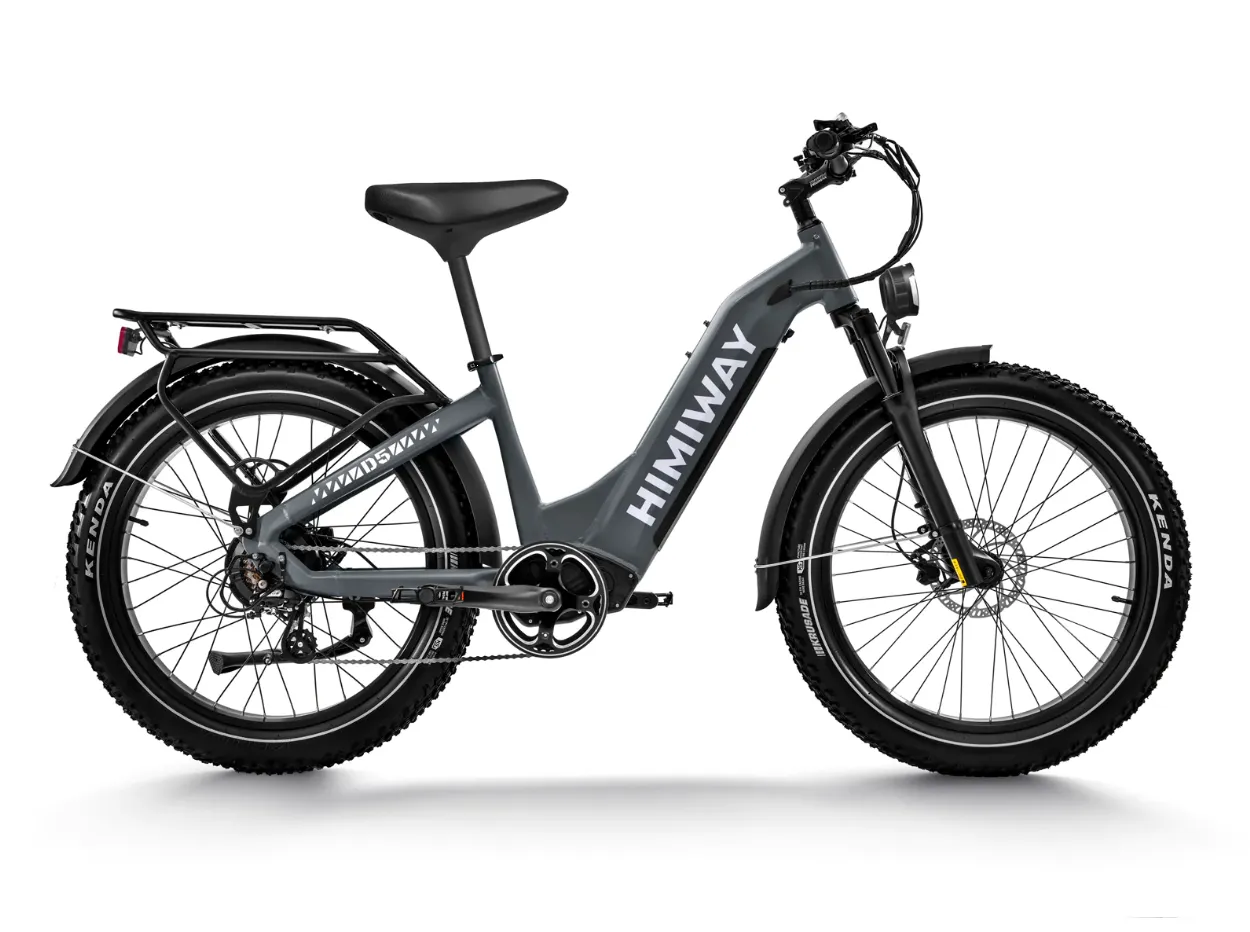

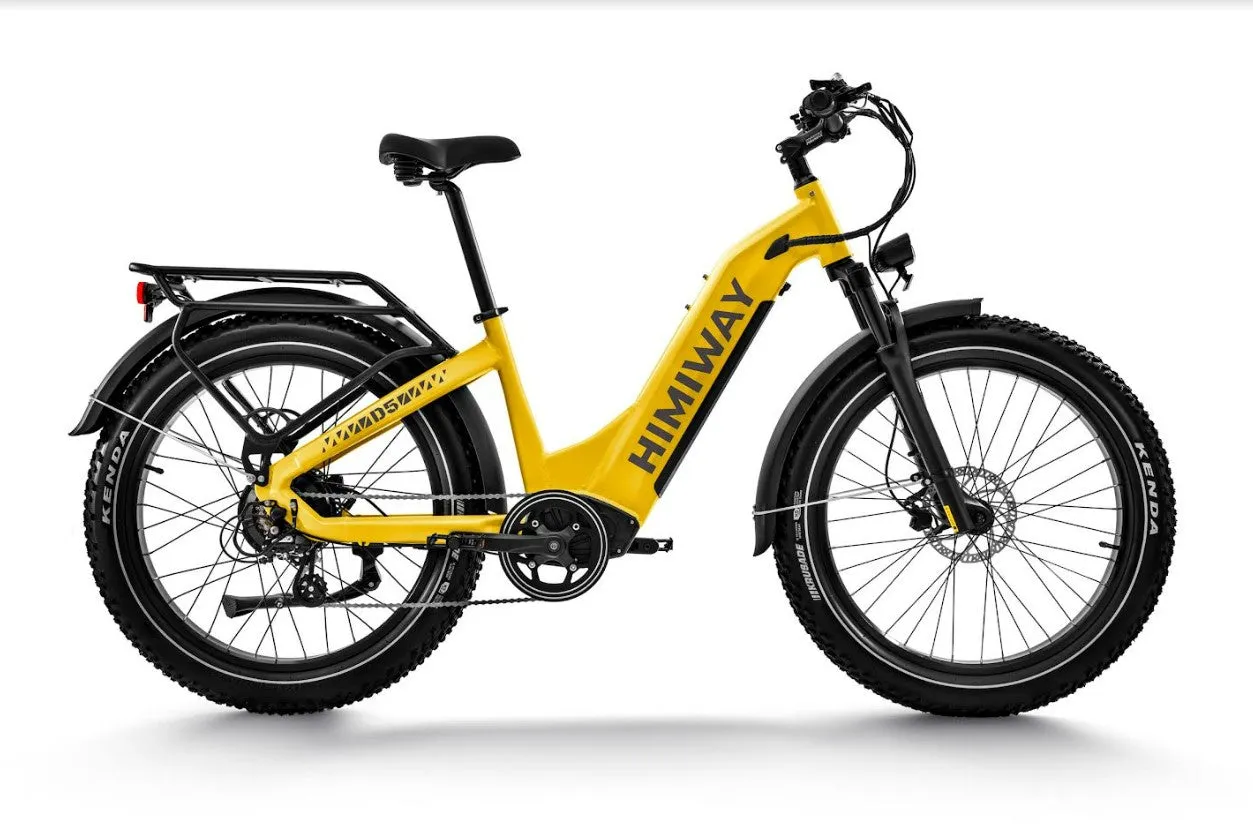

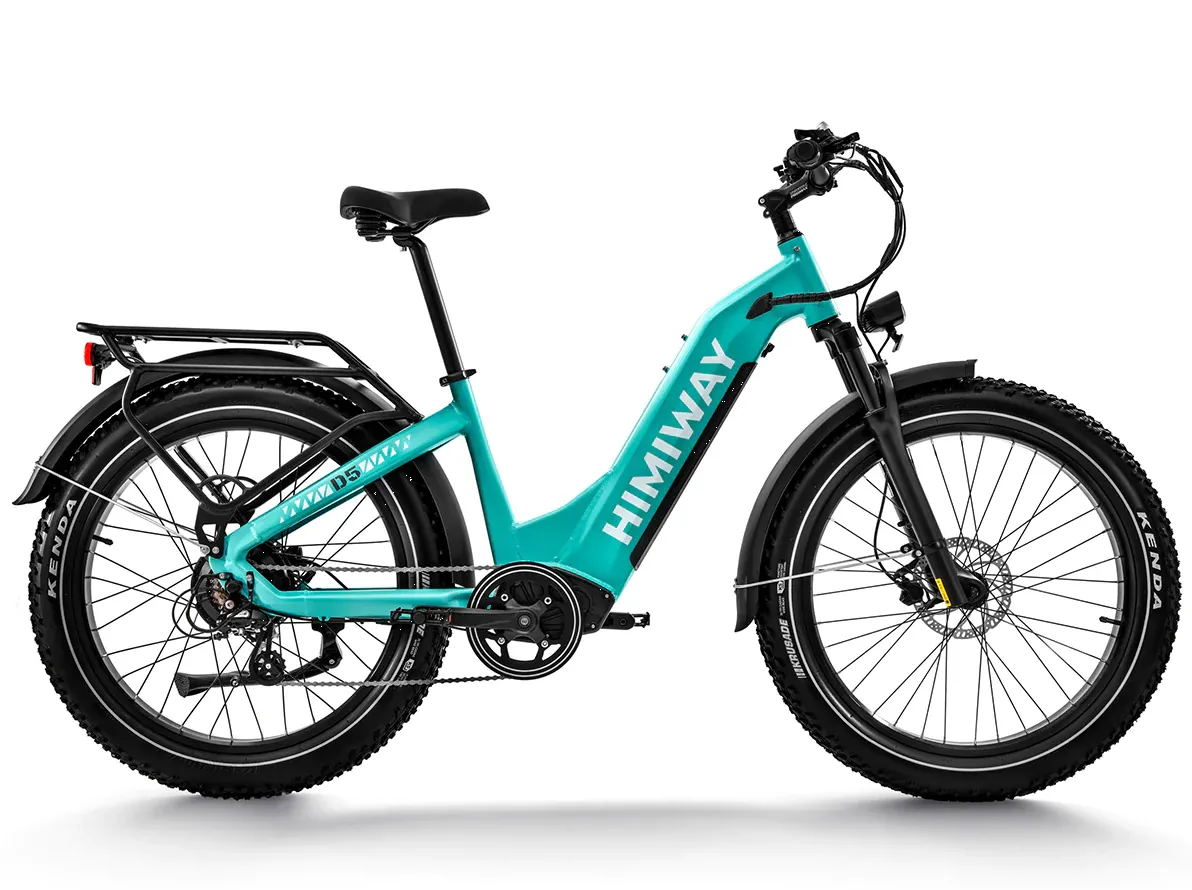

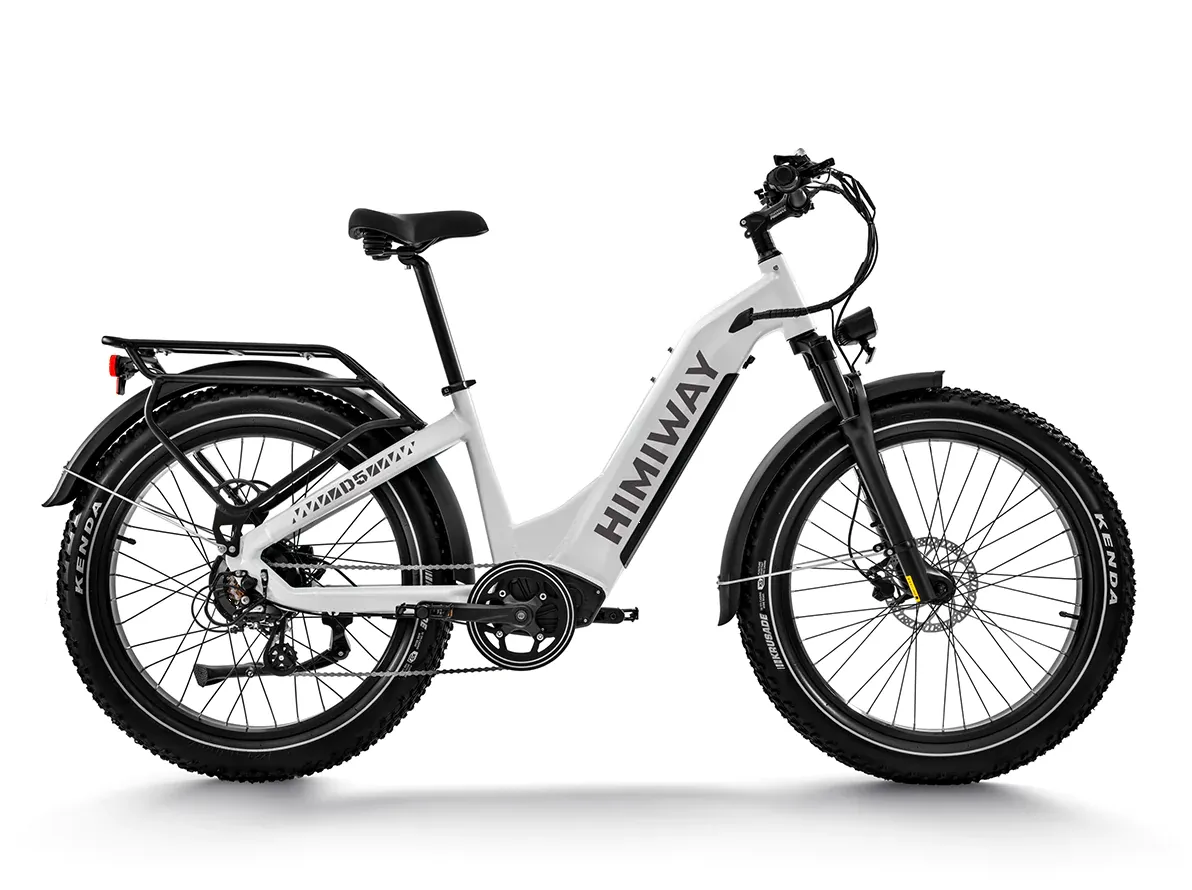

Zebra D5 Step-Thru Premium All-terrain Electric Fat Bike by HIMIWAY
Go Further Than Ever
Himiway Zebra ST, the updated version of Himiway Cruiser ST, is equipped with powerful 750W gear hub motor and upgraded inner ring. The design of 26-inch Kenda fat tire strengthens the traction, avoiding slipping on the ground and sinking in mud or snow. With removable 960Wh Samsung/LG battery capacity and 52 5000mAh cells, the riding mileage of the Zebra ST ebike is 80 miles with pedal assist and 60 miles range with pure electric power. Get your Zebra ST, and keep wild on Himiway.
Updated 6061 Aluminum Frame & Fully Integrated Battery Design
uses high-quality 6061 aluminum for the frame to give the bike unparalleled durability. Its reserved fork accommodates wider tires which allows you to upgrade to 4.8-inch tires. The integrated design gives you protection from inclement weather, eliminating up to 98% of common mechanical failures.
48V 20AH Samsung/LG Lithium-ion Battery
Himiway Zebra Step-Thru combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but larger diversity. Compared with 3500mAh cells made of nickel, cobalt and manganese, this 960Wh battery efficiently improves the range, stability and safety of Himiway bikes. A single charge can last up to 60 miles on pure electric power and over 80 miles with pedal-assist. The battery will maintain 80% capacity after 1000 charges.
60-80 Miles
Per Charge
5000mAh
Single Cell Capacity
960 Wh
Total Battery Capacity
7 hours
Time Until Fully Charge
750W Upgraded Brushless Geared Hub Motor
Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation, which can reduce the motor magnets’ attenuation speed to guarantee a longer life expectancy. The 750W brushless gear hub motor can help you conquer even the most rugged terrain easily.
FULL SPECIFICATIONS
Frame
6061 Aluminum frame
Headset
Neco H156EM 28.6*44-56*30
Fork
TRAMA 26""FAT34-26-HLO 95mm travel 9*135mm quick release
Front wheel
Rim: MD-147 26*4.0"*36H*12G A/V | Spoke: 12G 255/256L stainless (304M) | Hub: MB015-92 M9*12G*135*145W
Rear wheel
Rim: MD-147 26*4.0""*36H*12G A/V Spoke: 12G 214L stainless (304M) Hub: 48v 750w Himiway hub motor
Tires
Kenda 26*4.0
Battery
Samsung/LG 48V 20Ah
Motor
750W brushless gear motor
Display
LCD display with USB charger
Throttle
Thumb throttle
Sensors
Torque sensor丨speed sensor丨brake sensor
Crankset
Crankarm: Prowheel EB-01-242A-S1 170mm | Chain ring: 44T BCD104
Freewheel
Shimano MF-TZ500-7 14-28T
Chain
KMC Z8.3 EPT 120L
Groupset
Shimano altus M310 7 speed
Front brake
Tektro HD-E3520 hydraulic brake
Rear brake
Tektro HD-E3520 hydraulic brake
Rotors
Tektro TR180-52 F:180mm R:180mm
Stem
Zoom TDS-C269-8FOV 31.8*90mm
Handlebar
Promax HB-3188 22.2*31.8*700mm
Seatpost
Himiway Seatpost
Saddle
Himiway Saddle
Pedal
Aluminum pedal
Lights
48V LED light
Kickstand
Heavy-duty aluminum kickstand
Range
60-80 miles
Controller
48V/22A
Charger
US standard 3.0 A smart charger
Rider height
5′3″ ~ 6′5″
Weight
79 lb. (with battery)
Max. payload capacity
400 lb.
GEOMETRY
Disclaimer: Some advertising policies allow electric bikes with a max speed of 15.5mph. Ask us via email, phone or chat for more details.
