Product Details
＋

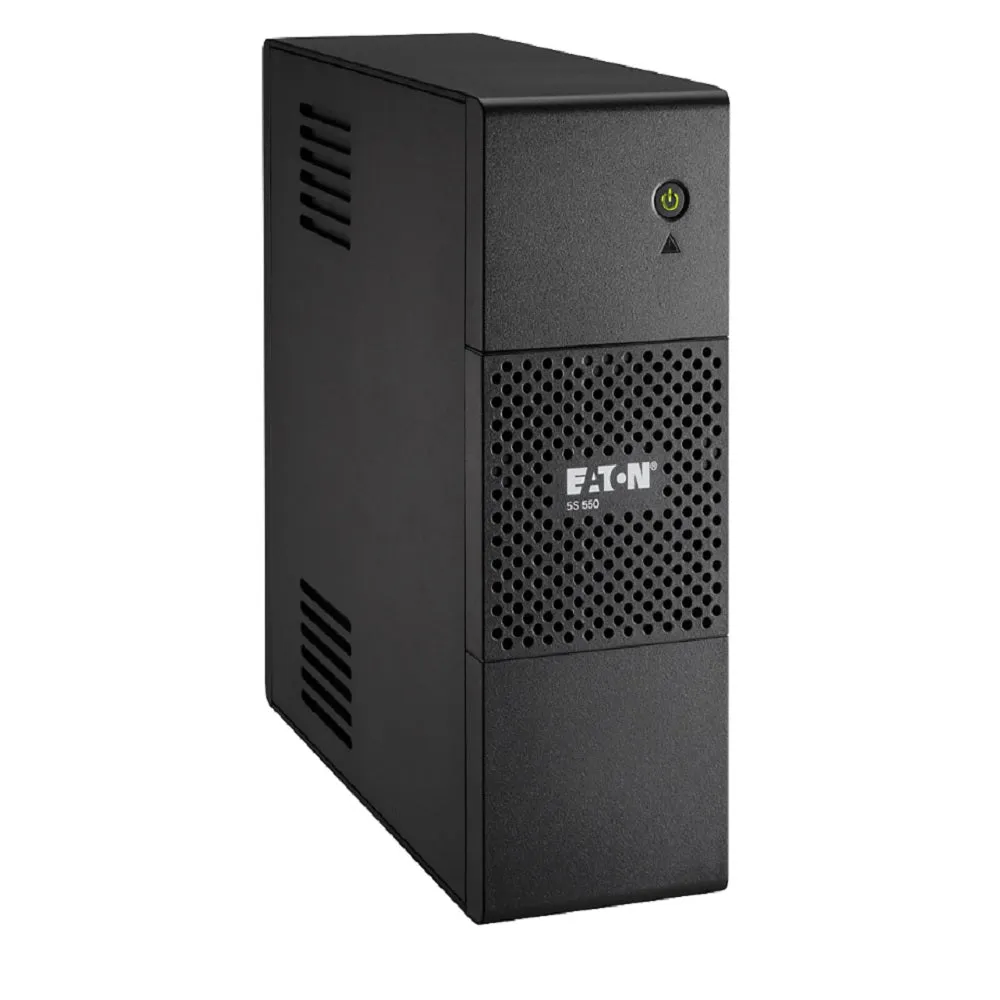

This is an Eaton 5S 700i 10A 700VA 420W UPS w/ BS Cord 5S700IBS. It comes as pictured.
Specifications:
- Product Name Eaton 5S UPS
- Part Number 5S700IBS
- Model Eaton 5S 700i w/ BS Cord 10A
- Product Length/Depth 87 mm
- Product Height 250 mm
- Product Width 260 mm
- Product Weight 7.1 kg
- Compliances CE Marked
- Certifications IEC/EN 62040-1
- IEC/EN 62040-2 CE , EAC , Model Code , Eaton 5S 700i w/ BS Cord 10A
- Secondary frequency - max 60 Hz
- Wattage 420 W
- Output power factor 0.6
- Form factor Tower
- Includes network card No
- Input connection C14
- Input voltage - min 175 V
- Output voltage - max 276 V
- Secondary frequency - min 50 Hz
- Software compatibility Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
- Battery replacement User replaceable
- Battery type Sealed, lead-acid
- Efficiency 97
- Construction type Free standing model
- Output voltage - min 184 V
- Color Black
- Extended battery capability No
- Output voltage range 184-276 V
- Topology Line-interactive
- Surge protection Yes
- Back-up time 8.5 min
- Input nominal voltage 230V default (220/230/240V)
- Input frequency range 46-70 Hz
- Input voltage - max 275 V
- Voltage type AC
- Phase (output) 1
- Battery management Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
- Auto shutdown function Yes
- Number of Outputs C13 6
- Operating temperature - min 0 °C
- VA rating 700 VA
- Potential free switch contact No
- Receptacle (3) C13, (3) C13 surge only
- Phase (input) 1
- Package contents (2) IEC-IEC cables, USB cable, User manual, Safety instructions, BS input cord
- Noise level <25 dB at 1 meter
- Feed type 1
- Runtime graph View runtime graph
- User interface LEDs
- Battery quantity 1
- Operating temperature - max 35 °C
- Voltage 230V
- Temperature range 0° to 35°C (32° to 95°F)
- Ethernet interface No
- Communication USB port (HID compliant)
- Relative humidity 0-85% non-condensing
- Output apparent power 700 VA
- Rack mounting kit No
- Output frequency 50/60 Hz
- Runtime at full load 2 min
- Type of interface USB
- Primary frequency - min 46 Hz
- Battery rating 12 V / 7 Ah
- Output nominal voltage 230V
- Expansion slots No
- Input voltage range 175-275 V
- Nominal frequency 50/60 Hz
- Primary frequency - max 70 Hz
- Altitude 2000 m
