Specifications

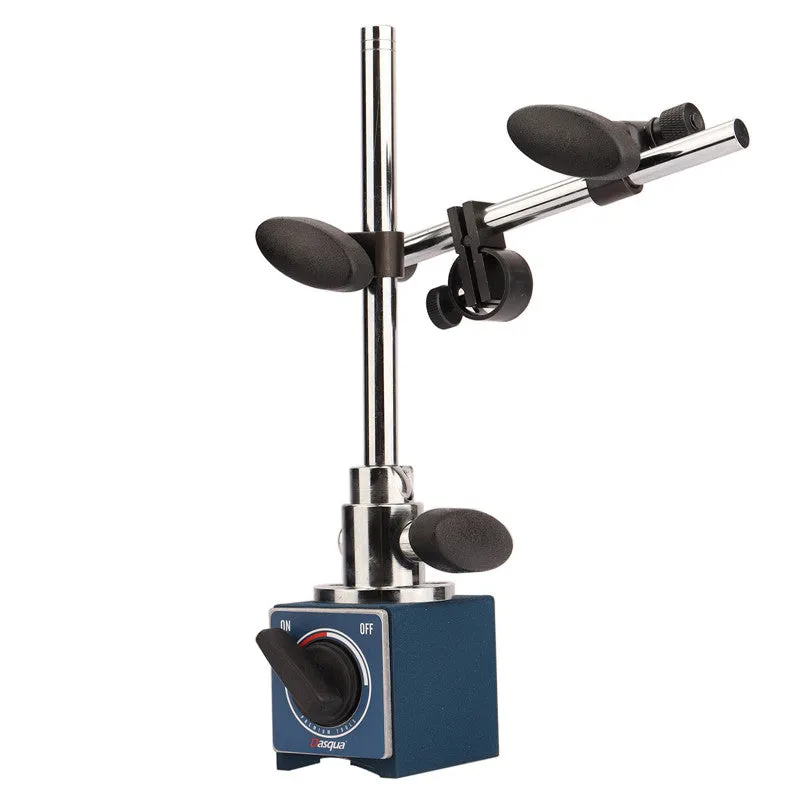

Product Name: Magnetic Base Stand Holder with Fine Adjustment
Item Number: 7122-0004
Holding Power:60Kgs / 132Lbs
Dimension of Base: 60*50*55cm
Warranty: Two Years

Features

• 150° V-grooved base can be placed on the cylindrical surfaces as well as flat surfaces for easily fixing the indicators.
• Well selected ferrite permanent magnet with magnetic force greater than calibration value
• On/off switch for magnet, easy to move the base without the influence of magnetic force. • CNC
• Solid structure with surfaces electroplated and end-faces
• With clamp holes of φ4mm, φ8mm, 3/8”, which satisfy the use of most indicators and test indicators
• With fine adjustment device, which is heat-treated to ensure stability and durability

Application

Used to maintain the position of a dial indicator or test indicator etc. during measurement operations.

Advantage Of DASQUA

• High quality material and precision machining process ensure product quality；
• A traceable QC system is worthy of your trust；
• Efficient warehouse and logistics management ensure your delivery time；
• A two-year warranty makes you without the worries behind；

Package Content

1 x Magnetic Base
1 x Protective Case
1 x Warranty Letter
