Product Description
Baumalight Brush Mower Hyex | Model CXC542/HX570 | 42" Cutting Width | 9,000LBS-28,000LBS | For Excavator
DESCRIPTION
The Baumalight CXC542/HX570 Brush Mower is a formidable attachment designed for excavators ranging from 9,000 lbs to 28,000 lbs. This robust brush mower is engineered for heavy-duty brush cutting and land clearing, making it perfect for forestry, construction, and agricultural applications.
With a substantial 54inch cutting width, this mower enables efficient and rapid clearing of dense vegetation. It features adjustable cutting heights from 2 inches to 24 inches, allowing for versatile operation depending on the requirements of the task at hand. The highgrade steel construction ensures long-lasting durability and resilience even in the toughest working conditions.
Powered by the excavator's hydraulic system, the mower delivers reliable performance, while the quick attach mount facilitates easy and swift installation. Whether you're clearing land for development, managing forestry projects, or performing routine maintenance, the Baumalight CXC542/HX570 Brush Mower stands as a powerful ally.
10,000LBS-28,000LBS 17-25GPM
42" ROTARY BRUSH CUTTER (WITH A MOUNT AND PINS) NO HOSES PROVIDED
The 42" Industrial excavator mounted rotary cutter CXC542 model is offered for mid-range excavators. Built much like the CXC550, the same bearing support is used with only the frame and rotor smaller for less weight to go on smaller excavators. We offer multiple motors to exact match your flow so be sure to checkout the motor options area of the page below to maximize your work as you clear land with your excavator.
10,000LBS-28,000LBS 21-30GPM
42" ROTARY BRUSH CUTTER (WITH A MOUNT AND PINS) NO HOSES PROVIDED
The 42" Industrial excavator mounted rotary cutter CXC542 model is offered for mid-range excavators. Built much like the CXC550, the same bearing support is used with only the frame and rotor smaller for less weight to go on smaller excavators. We offer multiple motors to exact match your flow so be sure to checkout the motor options area of the page below to maximize your work as you clear land with your excavator.
10,000LBS-28,000LBS 27-40GPM
42" ROTARY BRUSH CUTTER (WITH A MOUNT AND PINS) NO HOSES PROVIDED
The 42" Industrial excavator mounted rotary cutter CXC542 model is offered for mid-range excavators. Built much like the CXC550, the same bearing support is used with only the frame and rotor smaller for less weight to go on smaller excavators. We offer multiple motors to exact match your flow so be sure to checkout the motor options area of the page below to maximize your work as you clear land with your excavator.
Key Features
The Baumalight CXC542/HX570 Brush Mower HYEX 9,000LBS-28,000LBS for Excavator:
-
Wide Compatibility: Designed for excavators weighing between 9,000 lbs and 28,000 lbs.
-
Cutting Width: Offers a substantial 54-inch cutting width for efficient brush clearing.
-
Adjustable Cutting Height: Allows for adjustment from 2 inches to 24 inches for versatile cutting needs.
-
Durable Construction: Built with high- grade steel for longevity and toughness.
-
Hydraulic Power: Utilizes hydraulic power from the excavator for robust performance.
-
Quick Attach Mount: Equipped with a quick attach mount for easy and fast installation.
-
Heavy-Duty Performance: Ideal for land clearing, brush cutting, and forestry applications.
THREE CUTS PER PASS
As the rotating rotor mass throws the slasher blades at small diameter trees, the blade slices small sections away as the Rotary Brush Cutter advances forward. The leading tip takes a small bite and is immediately followed by the second tip taking another bite at 75–100 slashes per second with devastating results. The Rotary Brush Cutter’s reversible/replaceable blades are made of long lasting 1/2" AR 400 steel.
LARGE BEARING SUPPORT
Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system.
BLADE MOUNT
To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins.
3-WAY MODEL
Designed for easy service, the 3-Way models feature a heavy duty rotor with 3 fixed extensions. Each extension is finished off with a slasher blade. This configuration is capable of providing 75–100 slashes per second.
FREE BLADE SET
All CXC542 Rotary Brush Cutter come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping skid.
DECK STRENGTH
Taking back your property can be a rough job. We designed and built the deck as a solid platform to take on the task. Built from rugged 1/4 inch steel and then further reinforced with support channels it’s a solid base of operations.

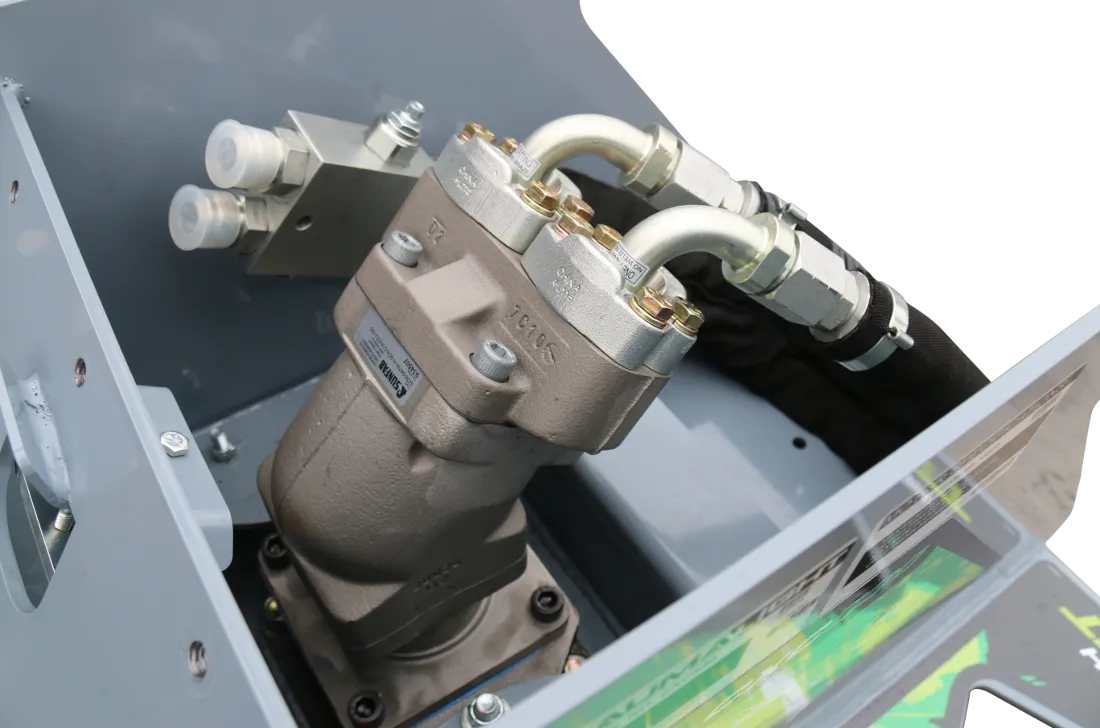

BENT AXIS PISTON MOTOR
Our industry leading bent axis piston motors make the most efficient use of your hydraulic flow and pressure for your brush clearing needs.

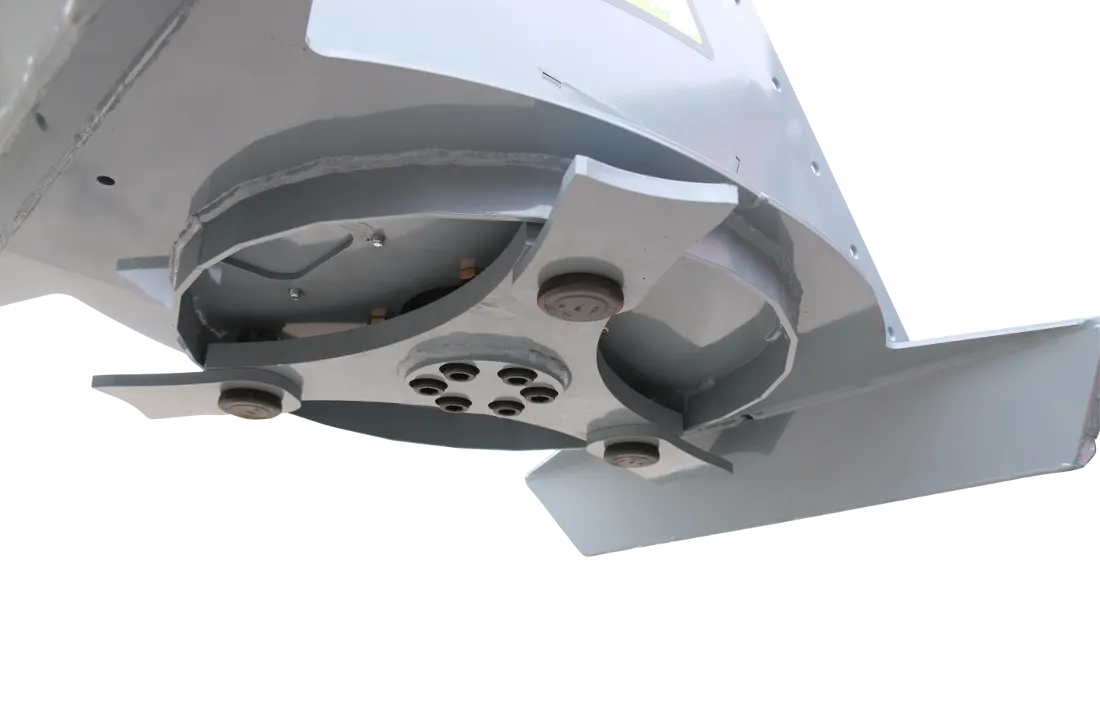

ROTOR
Using a 1" top plate and a 1" bottom plate this heavy-duty rotor sandwiches the three–way blade assembly in place.
AVAILABLE ON PACK WING PTO POWER PACKS
All Excavator Rotary Brush Cutter models are available with Baumalight’s Pack Wing PTO power packs for more carrier versatility.
Host Machines
10,000LBS-28,000LBS 17-25GPM
|
BOBCAT E42 R2 (LA) |
|
BOBCAT E50 |
|
BOBCAT E55 |
|
BOBCAT E60 |
|
BOBCAT E88 |
|
CATERPILLAR 305 |
|
CATERPILLAR 305.5 |
|
CATERPILLAR 306 |
|
DOOSAN DX50-5K |
|
DOOSAN DX62R-3 |
|
DOOSAN DX63-3 |
|
DOOSAN DX85R-3 |
|
HITACHI ZX50U-5 |
|
HITACHI ZX60USB-5 |
|
HYUNDAI HX85A |
|
HYUNDAI R55-9A |
|
HYUNDAI R60CR-9A |
|
HYUNDAI R80CR-9A |
|
JOHN DEERE 50G |
|
JOHN DEERE 60G |
|
KOMATSU PC45MR-5 |
|
KOMATSU PC55MR-5 |
|
KUBOTA KX080 |
|
SANY SY50U |
|
SANY SY60U |
|
SANY SY80U |
|
SANY SY95C |
|
TAKEUCHI TB260 |
|
TAKEUCHI TB290 |
|
WACKER NEUSON ET90
|
|
WACKER NUESON ET65 |
|
YANMAR VIO 50-6A |
|
YANMAR VIO 55 |
