Product Details

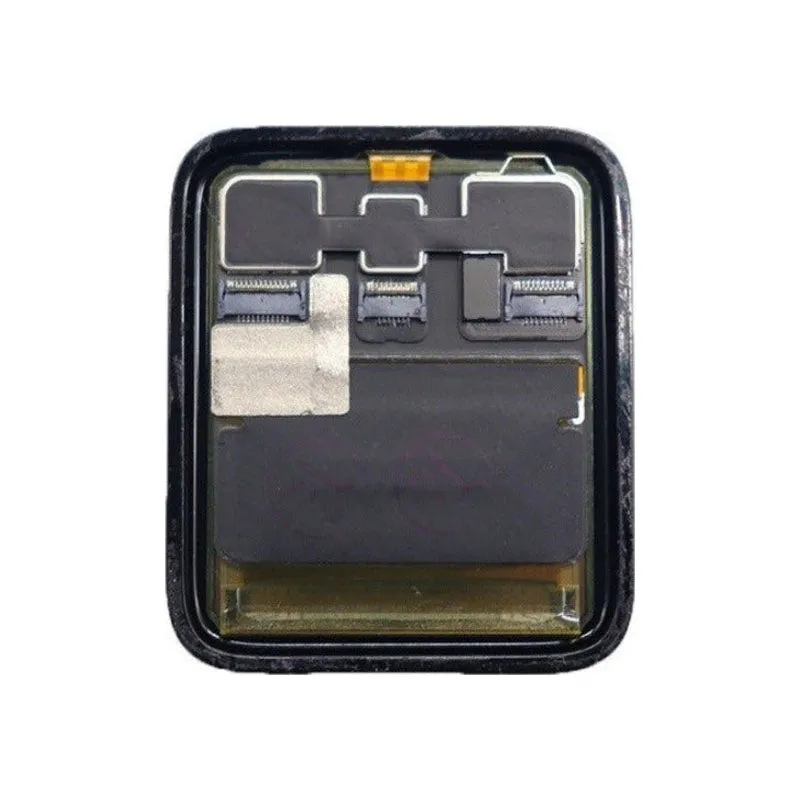

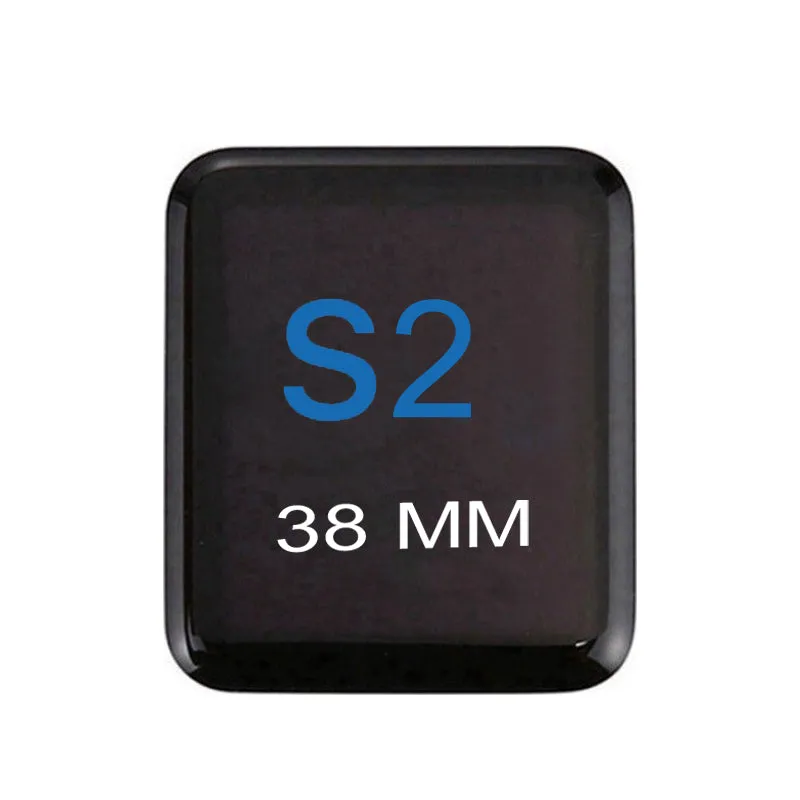

If your front glass is scratched or cracked or the OLED screen is damaged on your Series 2 Apple Watch, this replacement screen may be what you need to fix it.

Part Features:

OEM 272 x 340 38mm OLED Display
326ppi, 1000 cd/m2
Touch Screen Digitiser
3x ZIF connectors

Please Note

This Apple Watch OLED Screen is not compatible with the 42mm version of the Series 2 Apple Watch

Please Note

This part will either be refurbished or an A-Grade Used Genuine Apple replacement

Specifications

Part Type: OLED Replacement Screen
Resolution: 272 x 340
Pixel Density: 326 ppi
Watch Size: 38mm
Brightness: 1000 cd/m2
Warranty: 12 Months

Compatible Model Numbers

Apple Watch Series 2 38mm

Model Number (A Number)

A1757
A1816

Series 2 38mm Model NumbersHow do I find my Model number?

Model Identifier

Watch2,3

EMC Number

EMC 3104
EMC 3109

Device Number (M Number)

MNNQ2
MNNW2
MNNX2
MNNY2
MNP02
MNP22
MNP32
MNP42
MNP52
MNP62
MNP72
MNP82
MNP92
MNPA2
MNPD2
MNPE2
MNPF2
MNQ52
MNQ62
MNQ72
MNQ82
MNQ92
MNYP2
MNYX2
MP052
MP082
MP0D2
MP492
MQ132
MQ162
MQ172
MQ1F2

* Please note, to make searching the device number (M Number) easier, we have only listed the part numbers (First 5 characters), we have removed the region numbers as there is no difference in parts. For example, if "M Number" is "MC922LL/A". we remove the "region" portion and everything after (the "LL/A" at the end) leaving us with "MC922".

More info Less info

Installation Help

Watch the video above or the step-by-step guid below for assistance in completing this repair

Here is some tools you may need to help you complete the repair.

Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any quesions, please feel free to contact us either by phone (0508 IGADGET) or by

Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your watch and tape the screws to the right places or use a
Always power down your device prior to working on it
Make sure you always unplug the battery before attemping any component removal
When attempting to remove the screen, be careful not to push the blade or iFlex tool in too far or too hard, doing so may cause damage to the internal parts. Only 3mm depth is required to cut the adhesive. Draw a mark on your tool to help with depth management.
Test the LCD is functioning properly before sealing up the device
When removing the screen, it is very easy to tear the force touch gasket. We recommend having a spare on hand incase this happens to prevent issues after replacement.
