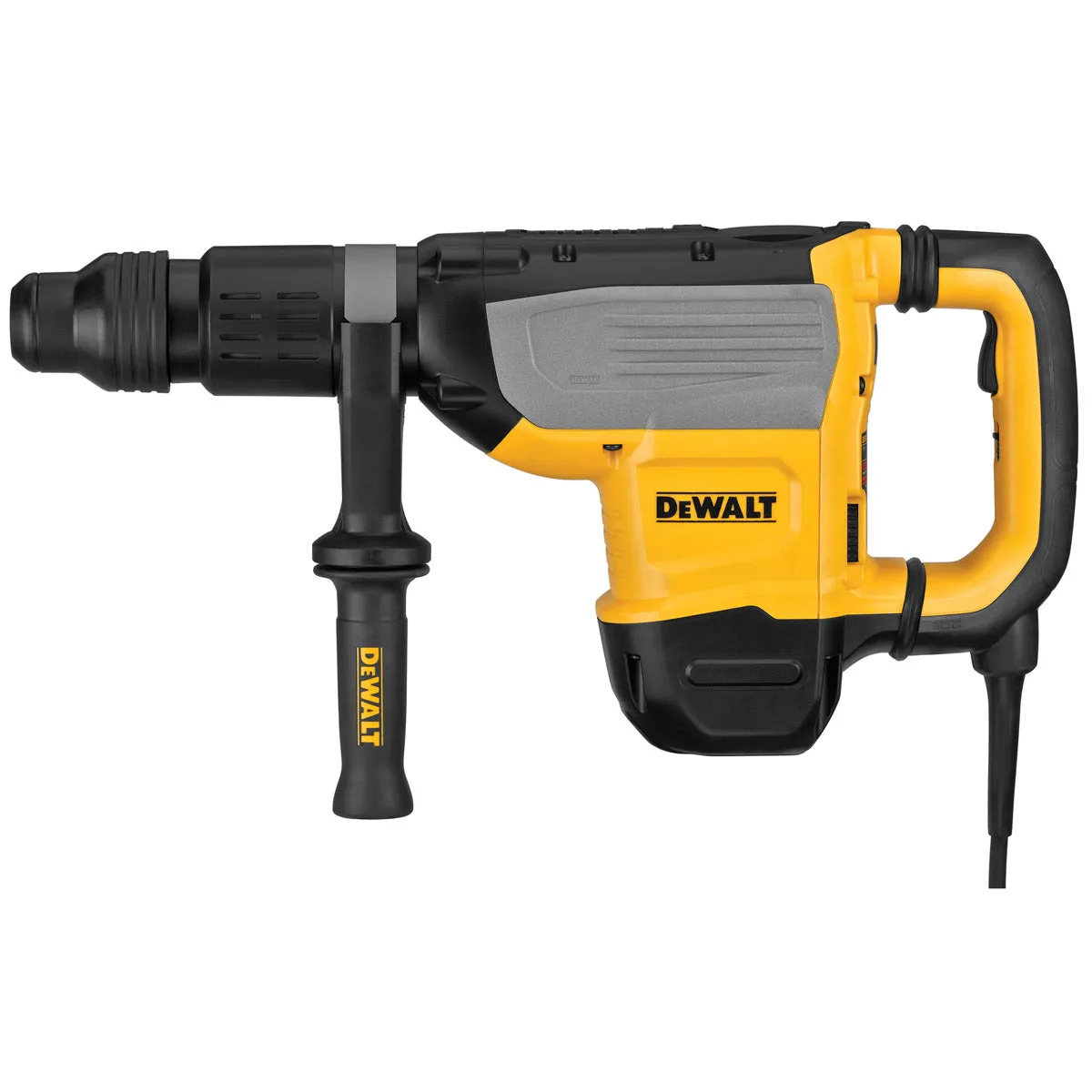

الميزات:

• Ideal for drilling anchor fixing and through holes in concrete and masonry from 12 to 52 mm in diameter. Core drilling up to 150 mm

• Active vibration control system incorporating a counterbalance mass and floating handle delivers extremely low vibration

• An anti rotation system detects a loss of tool control; and reacts by instantly cutting the power

• 2 stage clutch system that allows the user to change the clutch level from low to high torque; to optimise the tool for specific drilling applications

• Electronic variable speed and impact energy control

• Lock-on switch for chipping

• Rotation-stop for demolition applications in brick; masonry and light chasing in concrete

• Brush wear and service indicators

المواصفات التقنية:

• Tool Holder: SDS-Max

• Power Input: 1500 Watts

• Power Output: 980 Watt

• Impact energy (EPTA 05/2009): 15.5 J

• Load Speed: 125-250 rpm

• Blows per Minute: 1150-2300 bpm

• Max. Drilling Capacity [Concrete]: 52 mm

• Max. Drilling Capacity [Breakthrough bit]: 80 mm

• Max. Drilling Capacity [Core bit]: 150 mm

• الوزن: 9.9 kg

• Length: 561 mm

• Height: 272 mm

• العرض: 116 mm

• Hand/Arm Vibration – Hammer drilling into concrete: 8.0 m/s²

• نسبة تفاوت 1 ك (اهتزاز) 1.5 م/ث²

• Hand/Arm Vibration – Chiselling: 7.2 m/s²

• Uncertainty K 2 (Vibration): 1.5 m/s²

• Sound Pressure: 96 dB(A)

• نسبة تفاوت شدة الصوت: 3 dB(A)

• قوة الصوت: 107 dB(A)

• قوة الصوت Uncertainty: 4 dB(A)
